Kitchen Scale
High precision IC with low power consumption peripheral circuit can be used to measure the weight of the food. It provides APP to view the nutrition data.
Program overview
A kitchen scale has become increasingly popular as people are paying more attention to healthy diets and balanced nutrition. The SD8000 series is our kitchen scale solution. The signal can be inputted into the IC through the pressure sensor. The resulting data displays on the LCD or LED. Compared with mechanical scales this kind of scale is portable, digitally displayed, and accurate in weighing food. This reduces the cost and production time for kitchen scale manufacturers. The Qingleme App can record food weight and nutritional data. It performs various functions such as meal preparation, nutritional analysis, meal recommendation, timer assistant, and food comparison.
Program advantages

  • High precision and low cost

  • Peripherals and internal resources are rich with fewer peripheral components needed

  • Low power consumption is suitable for battery-powered applications

High precision and low cost

Peripherals and internal resources are rich with fewer peripheral components needed

Low power consumption is suitable for battery-powered applications

Features

  • 8 bits RISC ultra low power MCU, 6 stack levels. 8k Bytes OTP, 256 Bytes SRAM

  • High precision ADC, ENOB=17.6bits@8sps， selectable voltage source

  • Low noise, high input impedance preamplifier with selectable gain

  • Built-in 4MHz, 32kHz RC oscillators；8 bits TIMER；Watch Dog Timer

  • 4COM×17SEG LCD drive

  • Built-in temperature sensor, UART

  • Operating voltage range: 2.4~3.6V

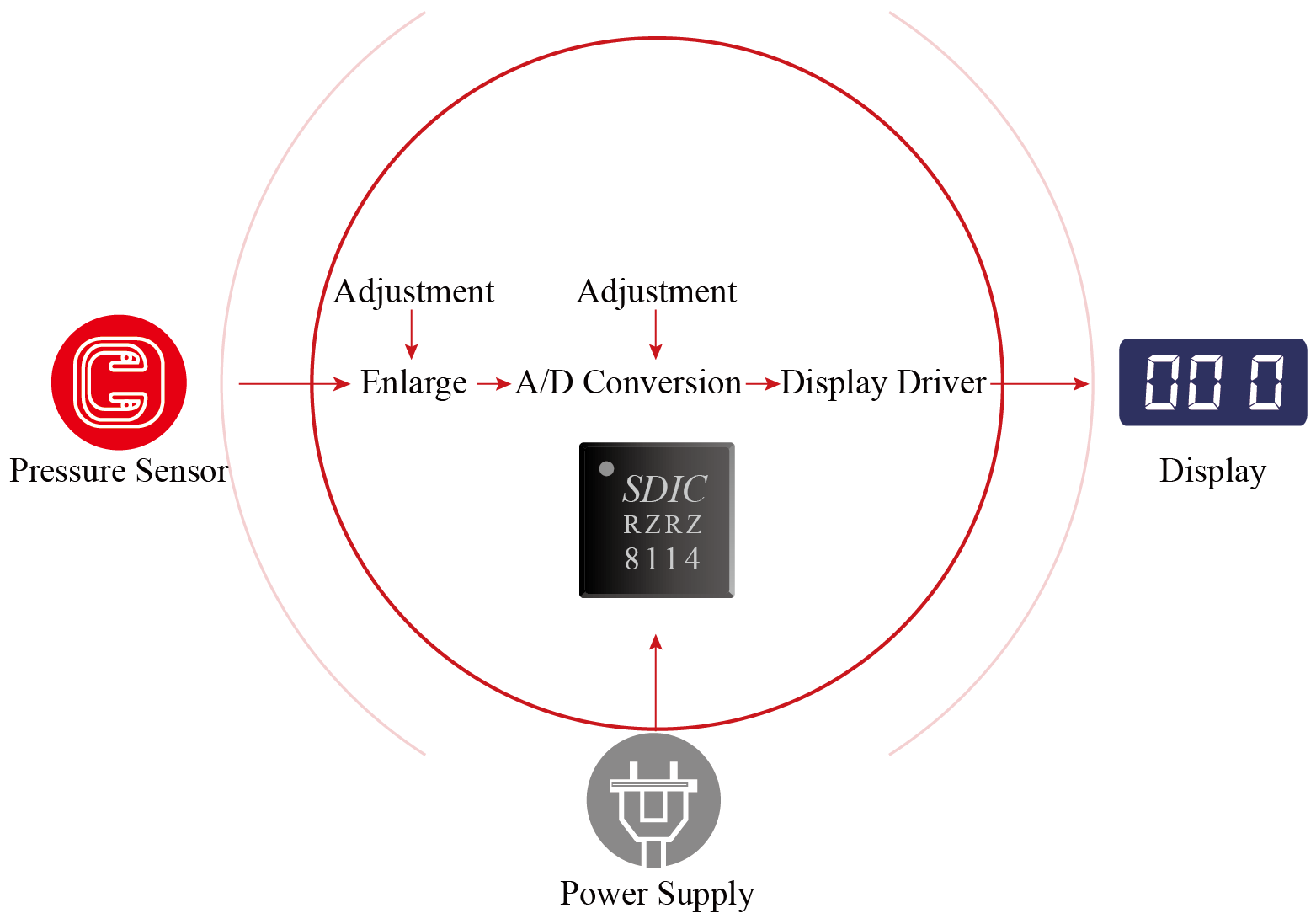

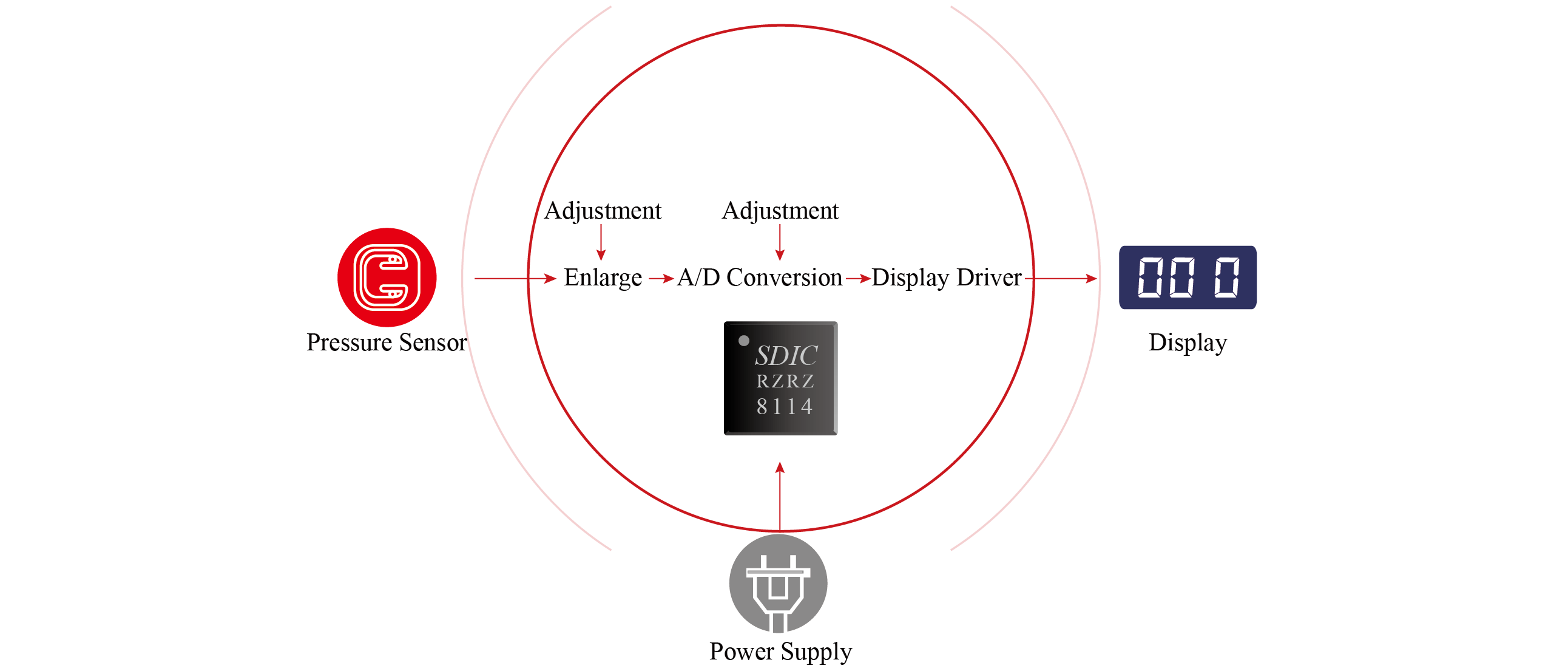

Application diagram
