Body Scale/Health Scale
High precision IC with low power consumption. The Bluetooth IC can measure 20 items such as weight and body fat percentage. It provides an App for recording body data.
Program overview
Electronic body scale has become increasingly popular as people are paying more attention to their own health. Compared to the previous mechanical version, the electronic body scale has the advantage of higher portability, digital display, and measuring accuracy. SD8000 series is specifically designed to reduce the production costs. Connection to the Qingleme App allows viewing of health reports. The Qingleme App can record 20 human body parameters such as weight and body fat. It provides diet structure recommendations, exercise plans customization, disease risk assessment, infant holding mode, family member addition, and data sharing.
Program advantages
  • Support up to four-electrode multi-frequency AC fat measurement

  • Using constant current method ensures it is safe and reliable

  • Built-in high precision ADC with effective bits up to 18.7Bit

  • Provides an App

  • Supports up to 20 human body parameters

Support up to four-electrode multi-frequency AC fat measurement

Using constant current method ensures it is safe and reliable

Built-in high precision ADC with effective bits up to 18.7Bit

Provides an App

Supports up to 20 human body parameters

Features
  • 8 bits RISC ultra-low power MCU, 6 stack levels. 16K Bytes OTP, 512 Bytes SRAM

  • High precision ADC, ENOB=18.7bits@8sps; 8bits DAC

  • Low noise, high input impedance preamplifier with selectable gain

  • Built-in 8MHz, 32kHz RC oscillators

  • Abundant peripheral resources: RTC, UART, PWM, PDM, PFD, CAPTURE, TIMER, infrared carrier generator, sine wave generator

  • 8COM×36SEG LCD drive

  • Operating voltage range: 2.4~3.6V

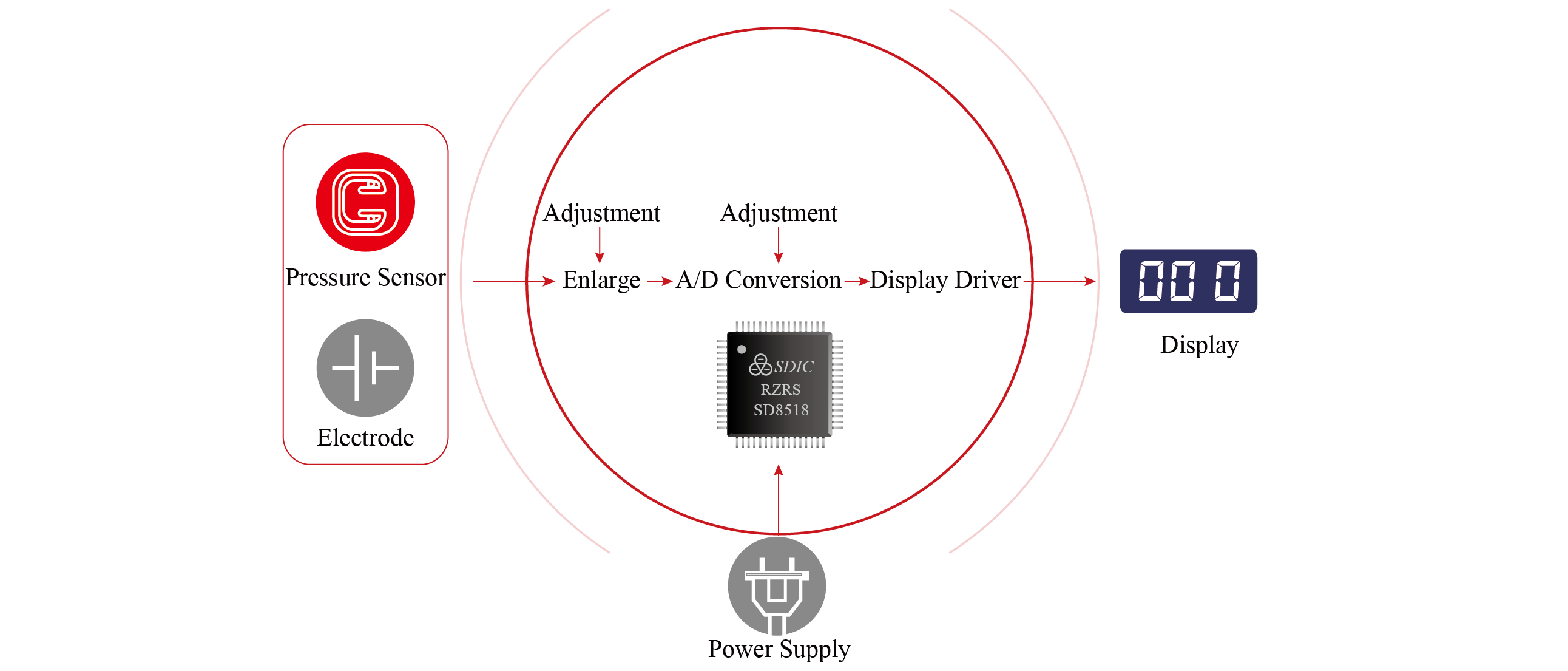

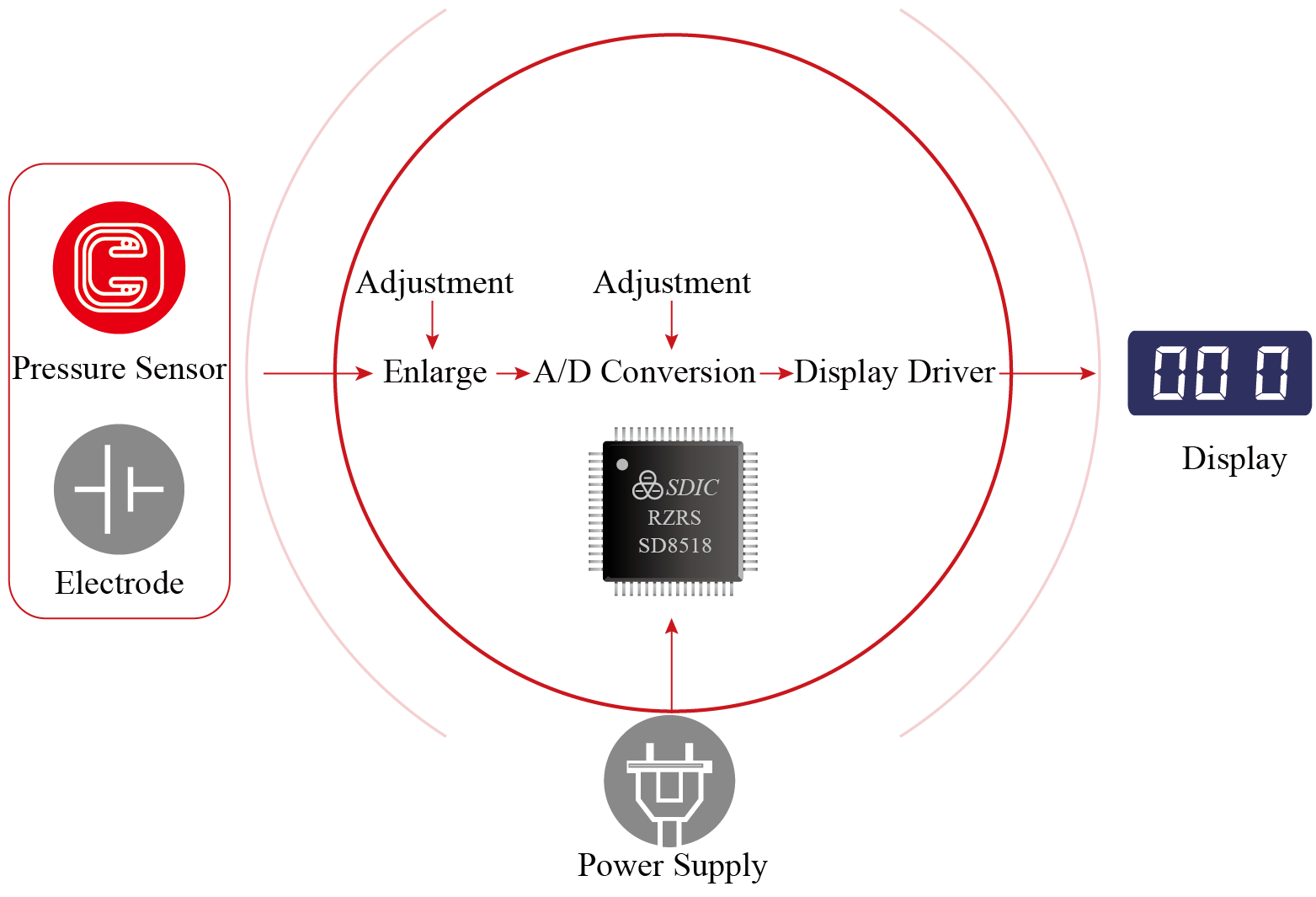

Application diagram
